AD08FH-PP-PCH

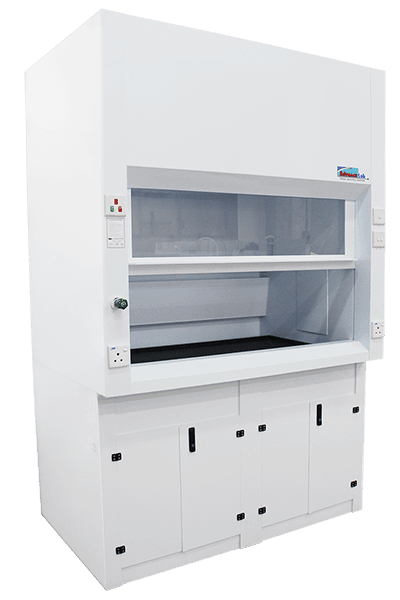

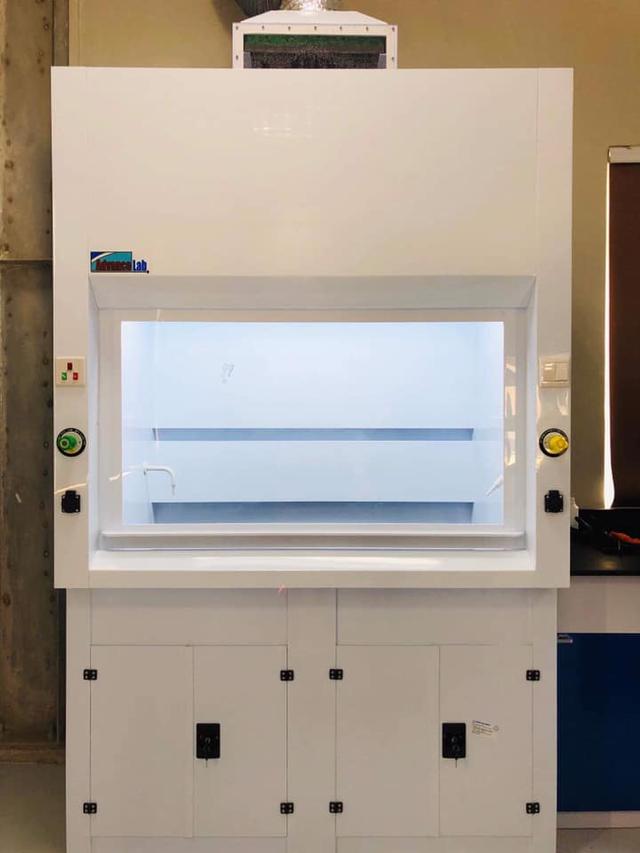

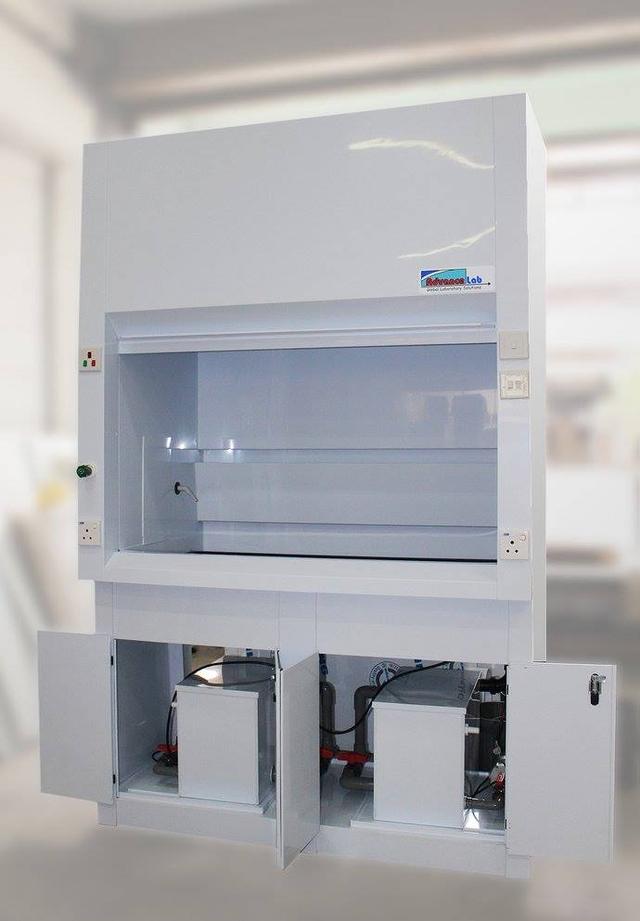

AdvanceLab Perchloric Acid Fume Hood, ducted, (mm) 2420 x 920 x 2420
Unit Price
On Request
Supplier
ADVANCELAB
Country of origin
Malaysia
Unit of Measurement
LOT
Delivery time
8 - 10 weeks
Validity Until
31.12.2024
AdvanceLab Perchloric Acid Fume Hood is designed for routine handling of hot perchloric acid. Fumehood when sized with an appropriate chemical resistant centrifugal exhaust fan will protect laboratory staff from exposure to harmful fumes.
Technical Data
- Dimension WDH [mm] 2420 x 920 x 2420
- Base cabinet supplied as standard
- Fully welded Polypropylene construction
- Polypropylene inner liner and baffle
- Dished Epoxy worktop, chemical & heat resistant
- Purpose built light box external to air flow
- Electrical light ballast for flicker free usage
- Counterbalanced sash assembly for long lifespan
- Tempered glass with Easygrip® hand rail
- Double layered side wall with access panels
- Polypropylene airfoil maximizing air sweep
- Built-in spray bar to prevent build-up of perchlorate salts
- Chemical resistant pump by IWAKI Japan
- Removable holding tank for cleaning
- Skid below tank for spills
- Airflow compliant with ASHRAE 110-95
- Compliant BS 7258, EN 14175 if order Controller
- Design velocity 0.5m/s at 500mm sash height
- Extract volume at 500mm height sash opening [CMH] 2481
- Stand-by duct collar diameter [mm] 300 x 2
