005-0750B

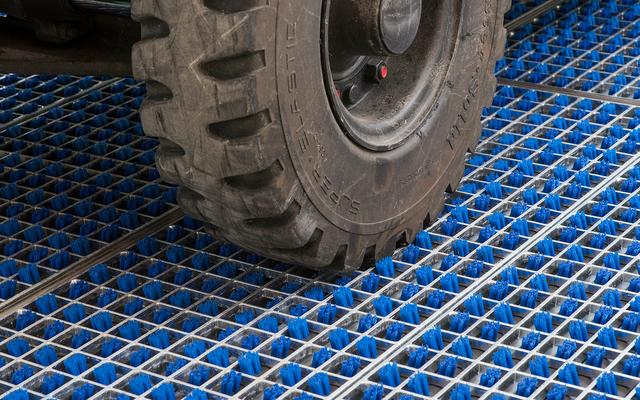

ProfilGate® b65 dry tire cleaning system, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2025

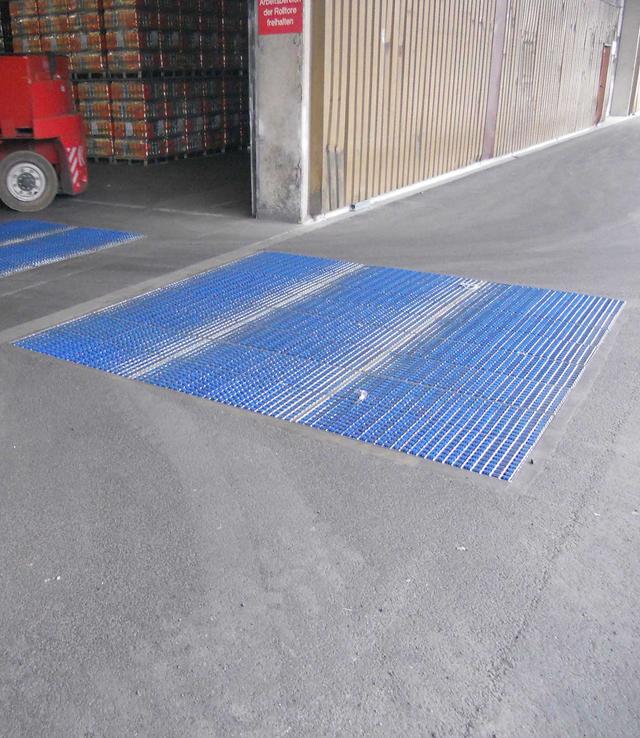

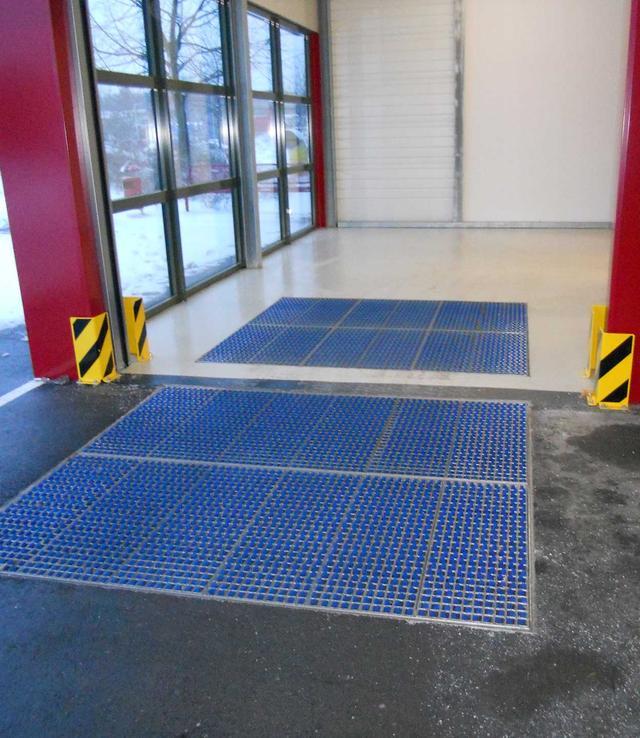

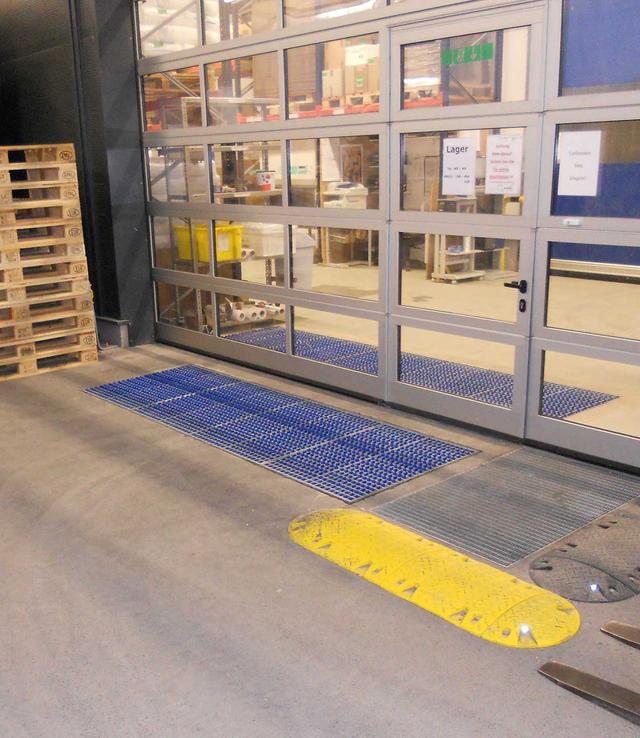

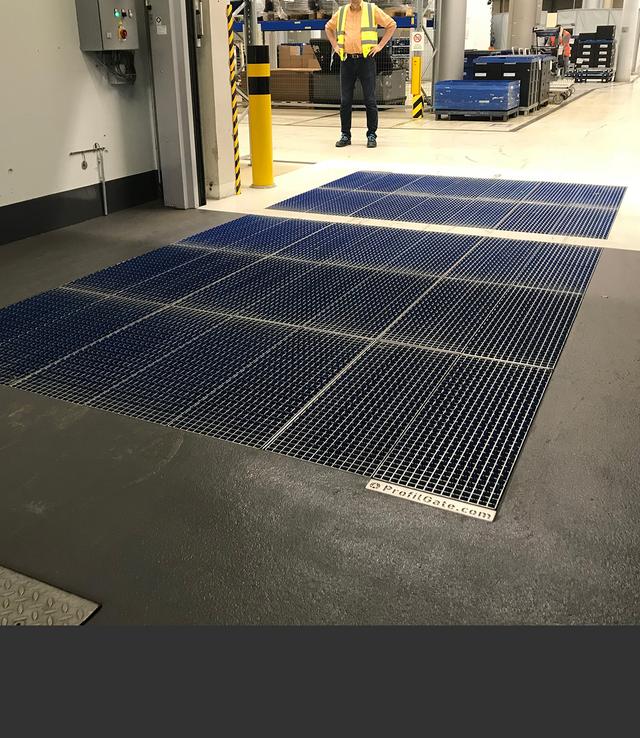

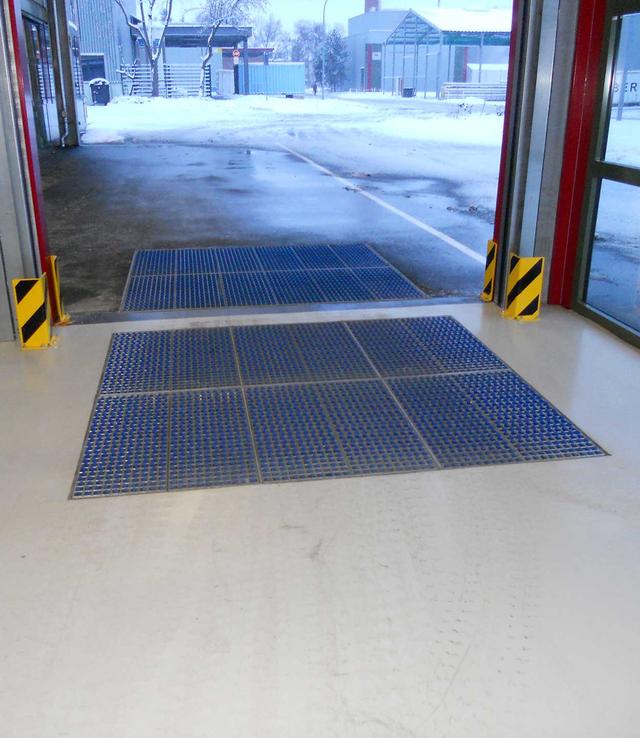

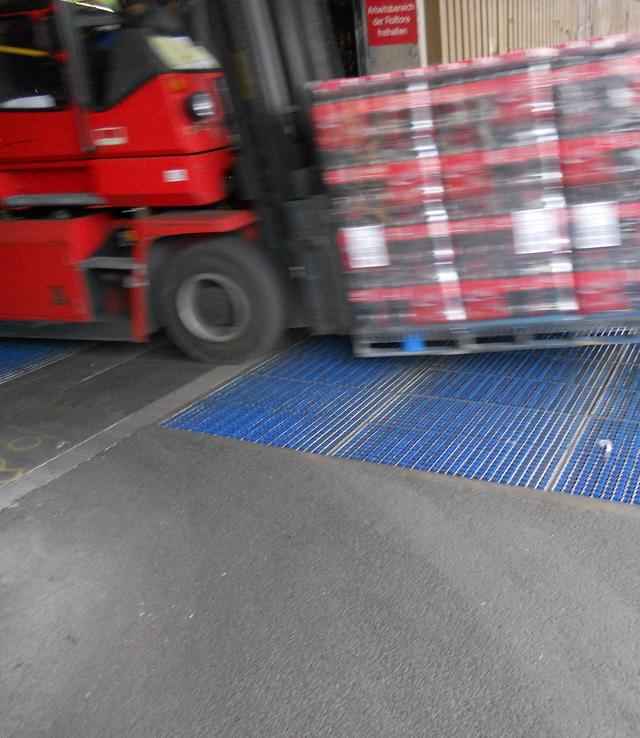

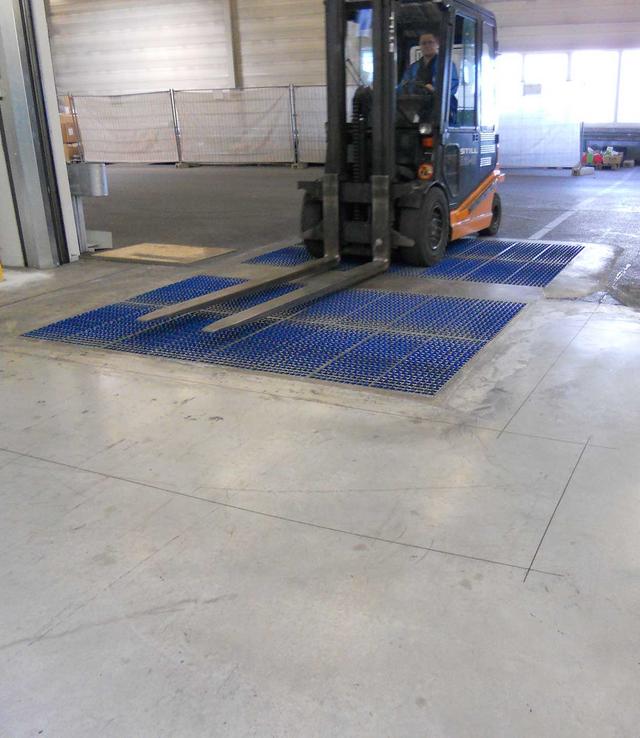

ProfilGate® b Series is dry tire cleaning system under harshest conditions in the industry. Ideal for driveways from outdoor due to the high dirt absorbing volume and wide-mesh grates. Especially suitable for the cleaning of wide tires, rollers and wheels with high axle loads and load-carrying capacities.
Technical Data
- For tire cleaning under harshest conditions
- Ideal for driveway from outdoor
- Recommended number of passages per day > 100
- Tray height [mm] 65

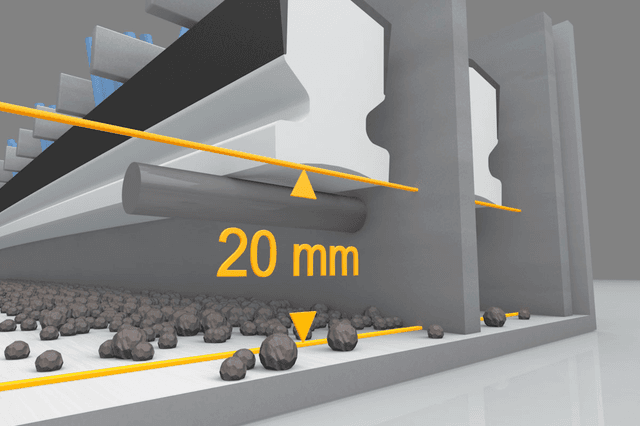

- Extra dirt / water container [mm] 20
- Optimum for tire cleaning
- Maximum admissible vehicle weight [t] 40
- Appropriate roller width [mm] ≥31
- Suitable for above ground application
- Steel (S 235 JR) grate
- Stainless steel V2A (1.4301) tray
- Brush strip per grate 10
- Grates per segment 2
- Number of segments W x L 1 x 1
- Tray size W x L [mm] 718 x 980
- Number of grates x weight [kg] 2 x 29
Documents
005-0750B__Maintenance Plan.pdf- 005-0750B__Catalogue.pdf
- 005-0750B__Storing and Shipping.pdf
- 005-0750B__Material for Installation.pdf
- 005-0750B__Operation Manual.pdf
- 005-0750B__Changing Brush.pdf
- 005-0750B__Installation above Ground.pdf
- 005-0750B__Installation in Ground.pdf
- 005-0750B__Model Overview.pdf
- 005-0750B__Maintenance.pdf
