005-6750B

ProfilGate® b55 dry tire cleaning system, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024
ProfilGate® b Series is dry tire cleaning system under harshest conditions in the industry. Ideal for driveways from outdoor due to the high dirt absorbing volume and wide-mesh grates. Especially suitable for the cleaning of wide tires, rollers and wheels with high axle loads and load-carrying capacities.
b65
b55
1.0 x 1.0
1.5 x 1.0

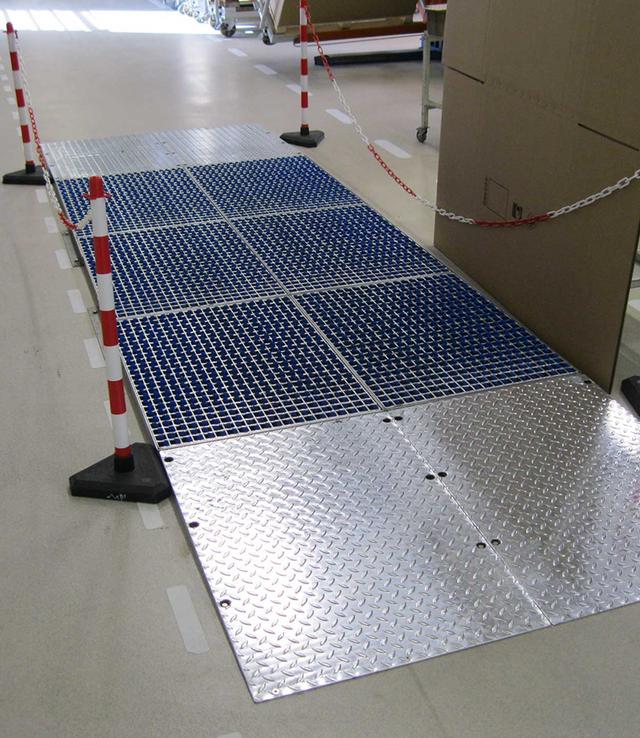

ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
ProfilGate® b55, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
Technical Data
  • For tire cleaning under harshest conditions

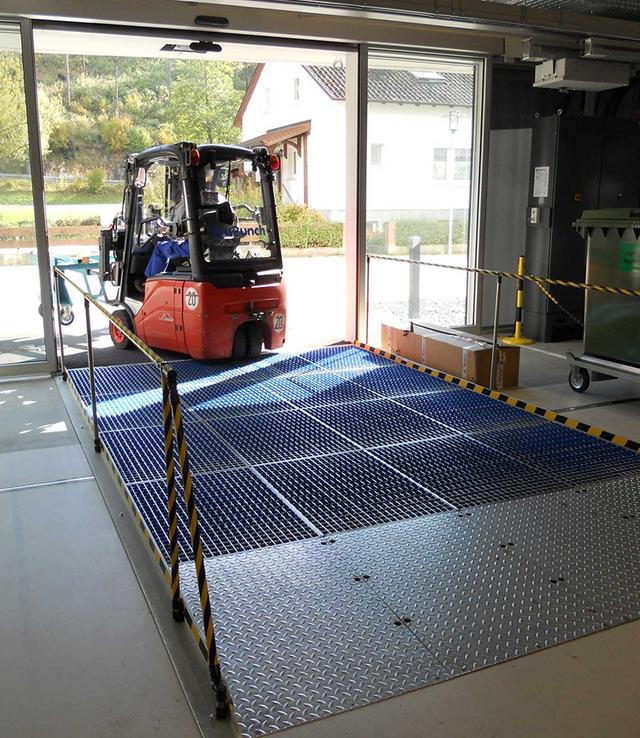

  • Ideal for driveway from outdoor
  • Recommended number of passages per day < 100
  • Tray height [mm] 55

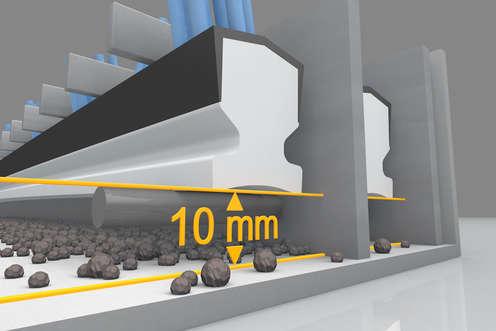

  • Extra dirt / water container [mm] 10

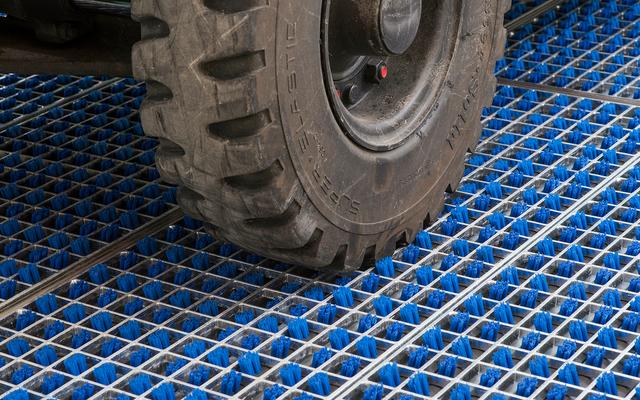

  • Optimum for tire cleaning
  • Maximum admissible vehicle weight [t] 30
  • Appropriate roller width [mm] ≥31
  • Suitable for above ground application

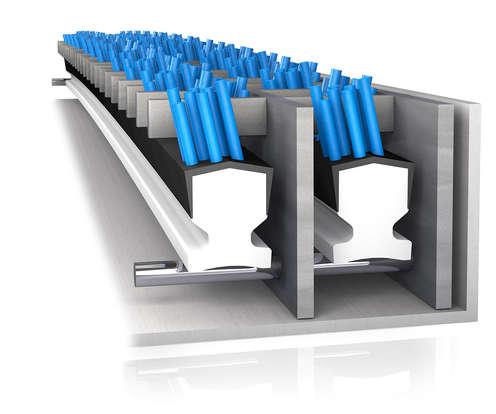

  • Steel (S 235 JR) grate
  • Stainless steel V2A (1.4301) tray
  • Brush strip per grate 10
  • Grates per segment 2
  • Number of segments W x L 1 x 1

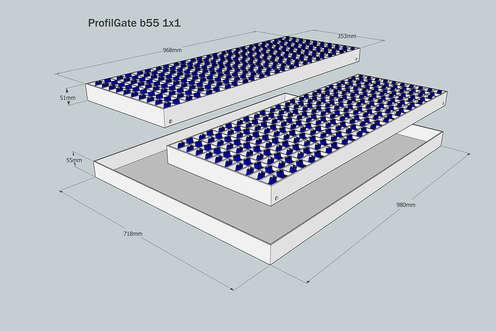

  • Tray size W x L [mm] 718 x 980
  • Number of grates x weight [kg] 2 x 27
