005-0790B

ProfilGate® st65 dry tire cleaning system, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate

Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

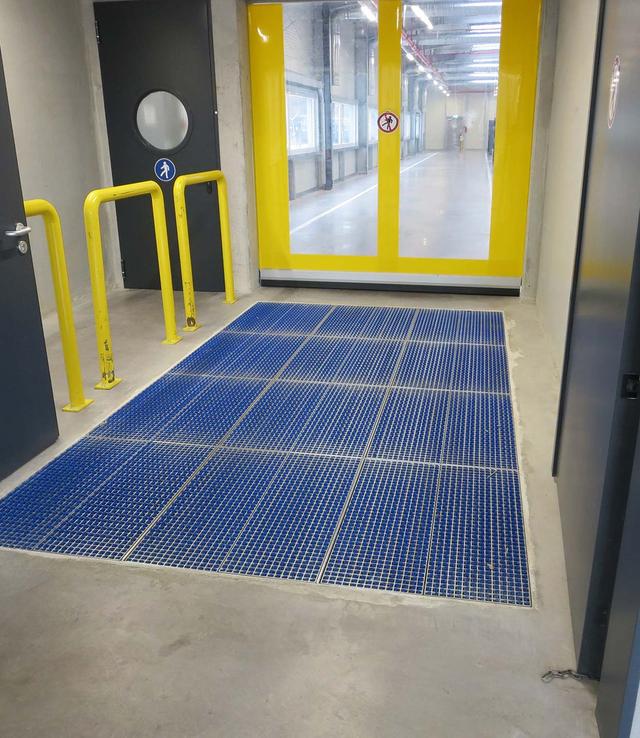

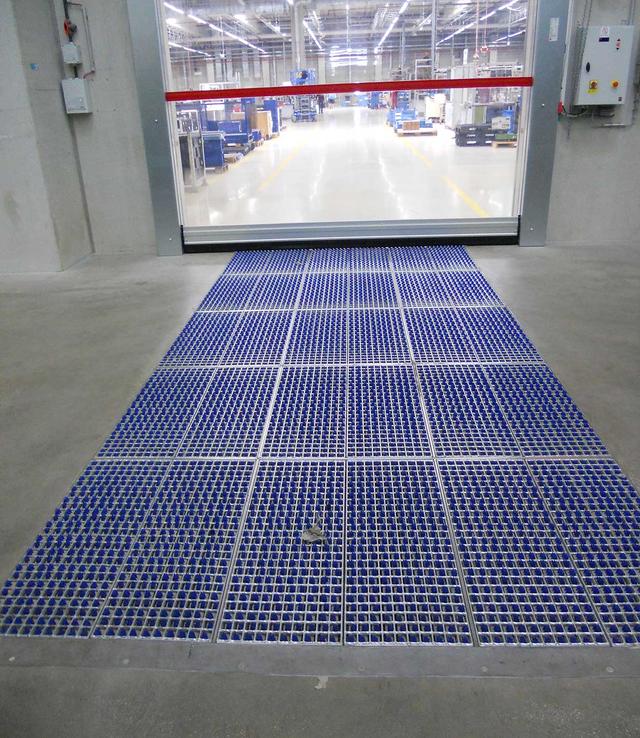

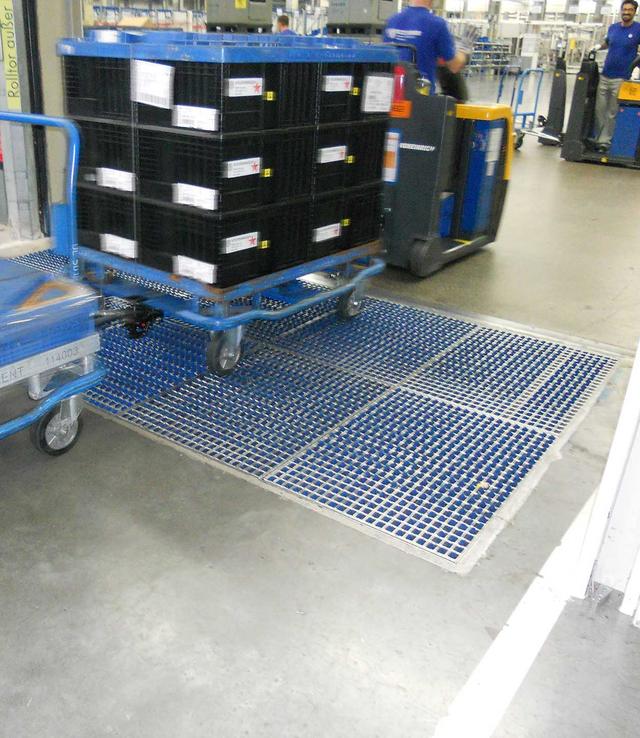

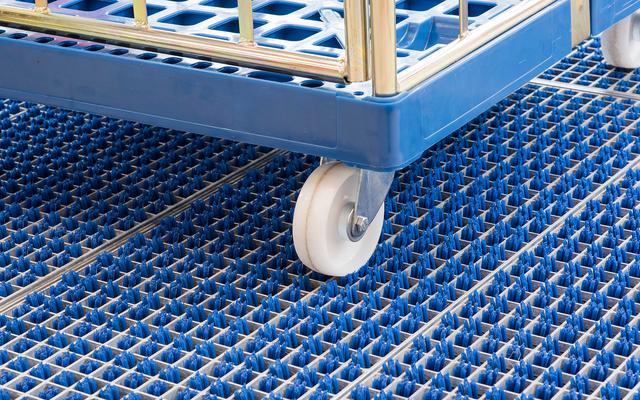

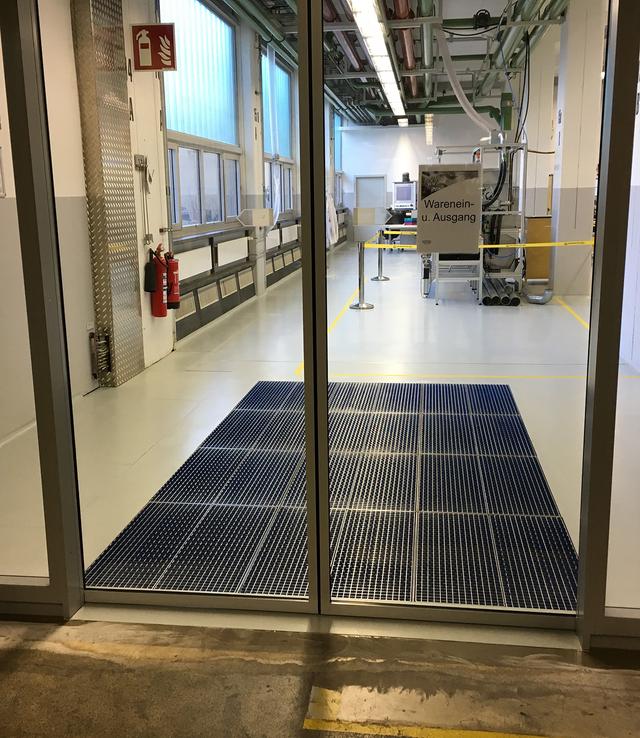

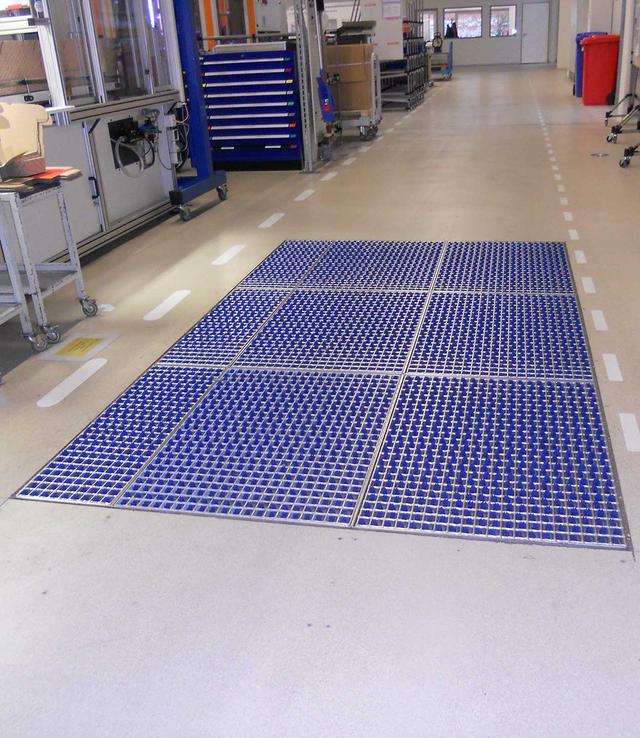

ProfilGate® Series st is dry tire cleaning system specialized for the cleaning of narrow rollers. Owing to the fine-mesh structure of the grates, these models are particularly suitable for route tugger trains, carts, trolleys and AGV. Ideal for all indoor areas due to smooth-run, even grate surface, also with narrow, hard rollers.
st65
st55
1.0 x 1.0
1.5 x 1.0
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
ProfilGate® st65, WLH (mm) 718 x 980 x 65, 1 x V2A-Tray, 2 x Grate
Technical Data
  • For special cleaning of narrow rollers
  • Ideal for in indoor areas
  • Recommended number of passages per day > 100
  • Tray height [mm] 65

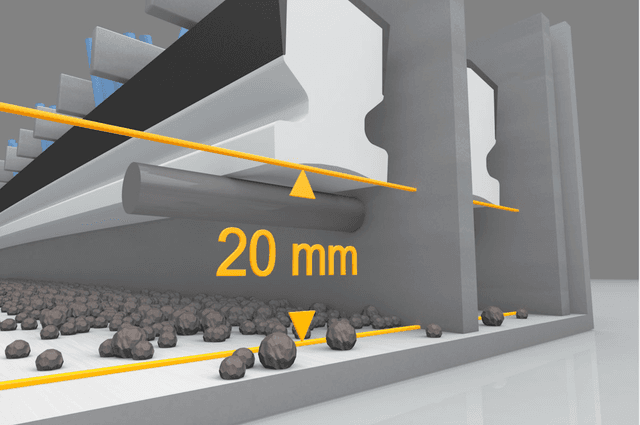

  • Extra dirt / water container [mm] 20
  • Optimum for tire cleaning
  • Maximum admissible vehicle weight [t] 40
  • Suitable for hard rollers
  • Appropriate roller width [mm] ≥24
  • Suitable for above ground application
  • Steel (S 235 JR) grate
  • Stainless steel V2A (1.4301) tray

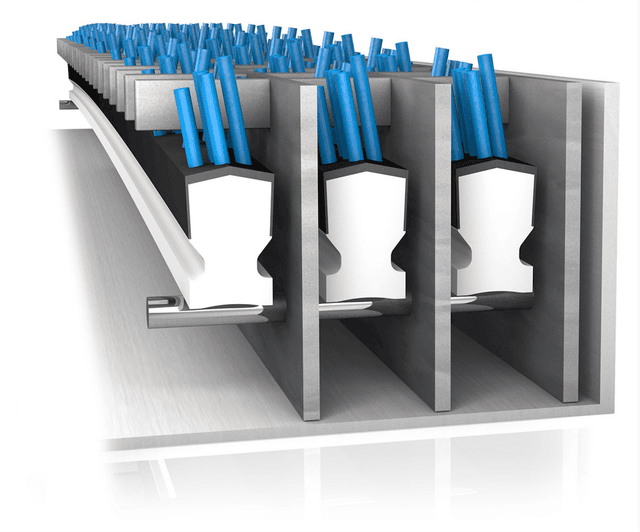

  • Brush strip per grate 14
  • Grates per segment 2
  • Number of segments W x L 1 x 1

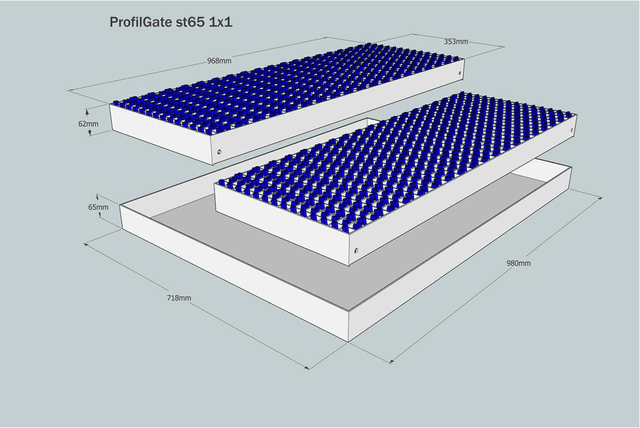

  • Tray size W x L [mm] 718 x 980
  • Number of grates x weight [kg] 2 x 31
