005-6110B
ProfilGate® b55 dry tire cleaning system, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

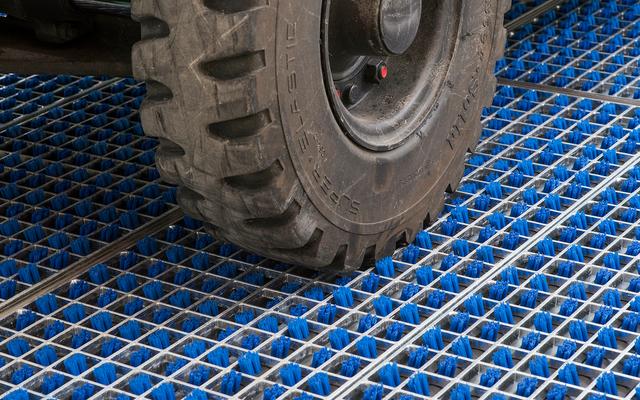

ProfilGate® b Series is dry tire cleaning system under harshest conditions in the industry. Ideal for driveways from outdoor due to the high dirt absorbing volume and wide-mesh grates. Especially suitable for the cleaning of wide tires, rollers and wheels with high axle loads and load-carrying capacities.
Technical Data
- For tire cleaning under harshest conditions

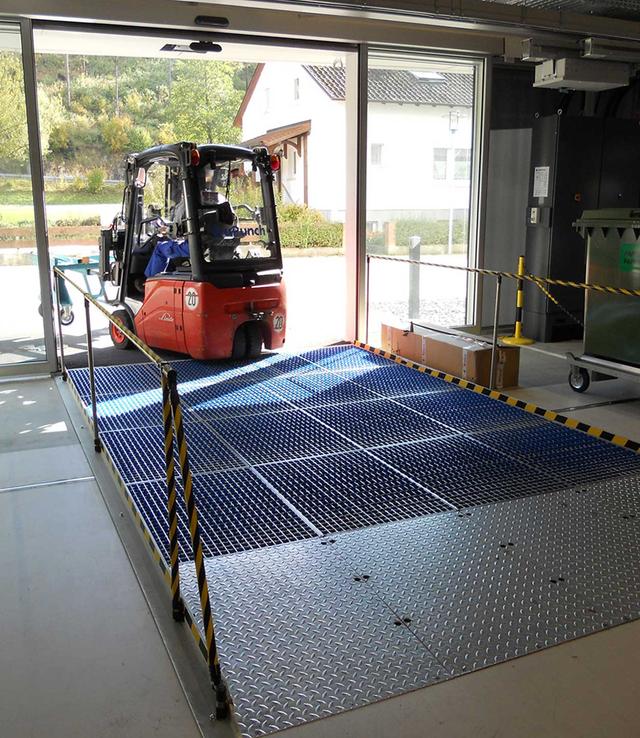

- Ideal for driveway from outdoor
- Recommended number of passages per day < 100
- Tray height [mm] 55
- Extra dirt / water container [mm] 10
- Optimum for tire cleaning
- Maximum admissible vehicle weight [t] 30
- Appropriate roller width [mm] ≥31

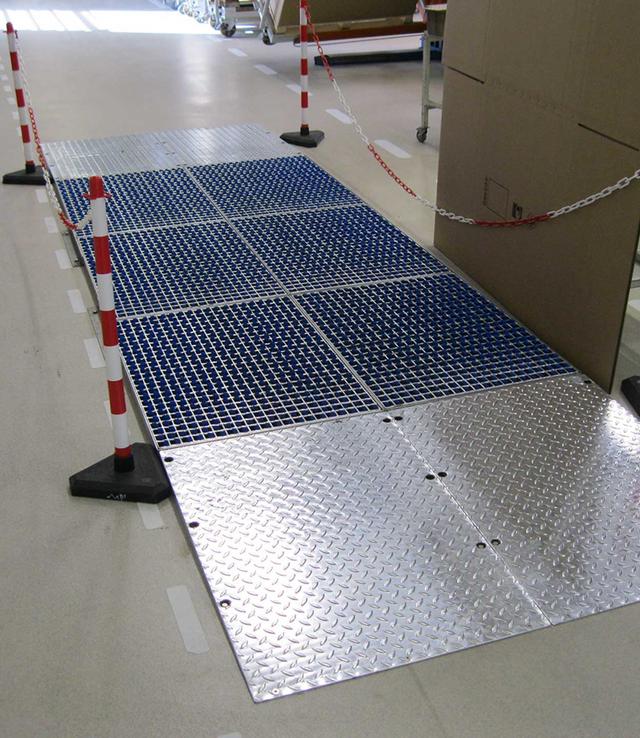

- Suitable for above ground application
- Steel (S 235 JR) grate
- Stainless steel V2A (1.4301) tray
- Brush strip per grate 10
- Grates per segment 2
- Number of segments W x L 1.5 x 1

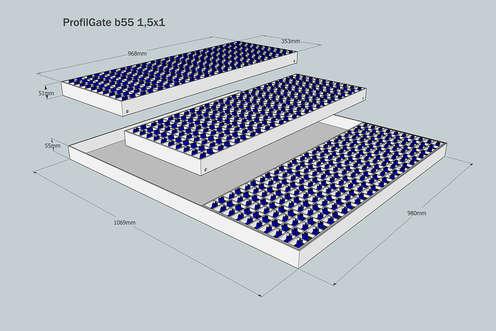

- Tray size W x L [mm] 1069 x 980
- Number of grates x weight [kg] 3 x 27
Documents
- 005-6110B__Changing Brush.pdf
- 005-6110B__Model Overview.pdf
- 005-6110B__Maintenance.pdf
- 005-6110B__Catalogue.pdf
- 005-6110B__Operation Manual.pdf
- 005-6110B__Maintenance Plan.pdf
- 005-6110B__Installation in Ground.pdf
- 005-6110B__Storing and Shipping.pdf
- 005-6110B__Installation above Ground.pdf
- 005-6110B__Material for Installation.pdf
