005-2300B

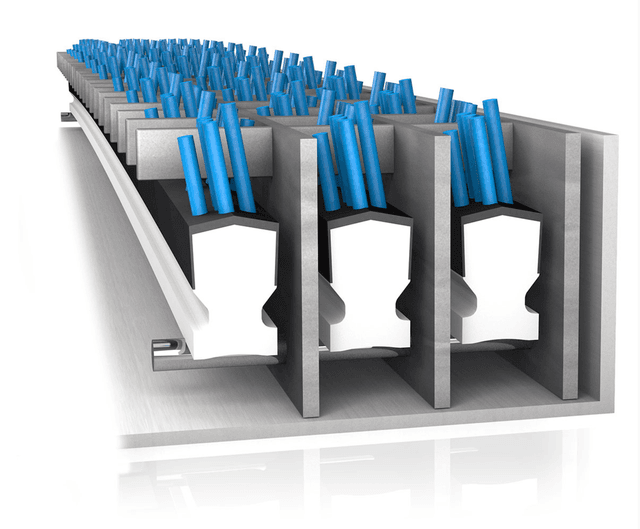

ProfilGate® st55 dry tire cleaning system, WLH (mm) 718 x 980 x 55, 1 x V2A-Tray, 2 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2024

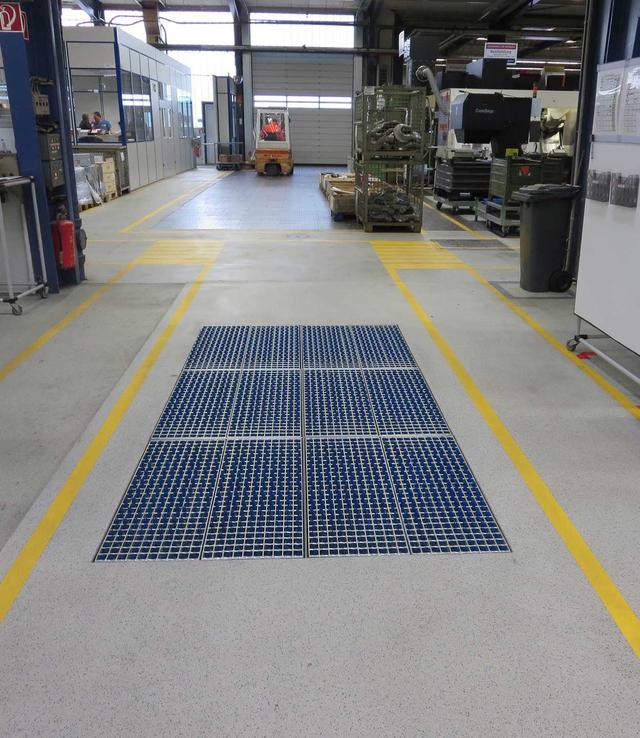

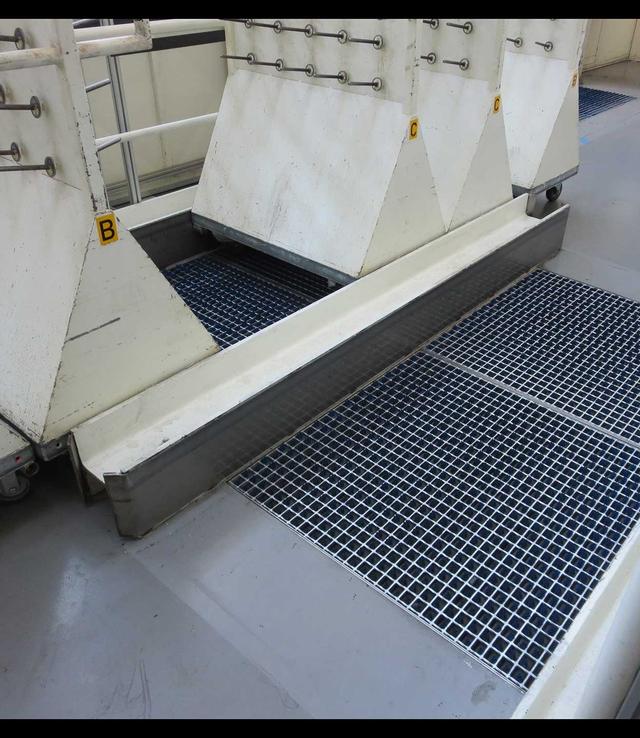

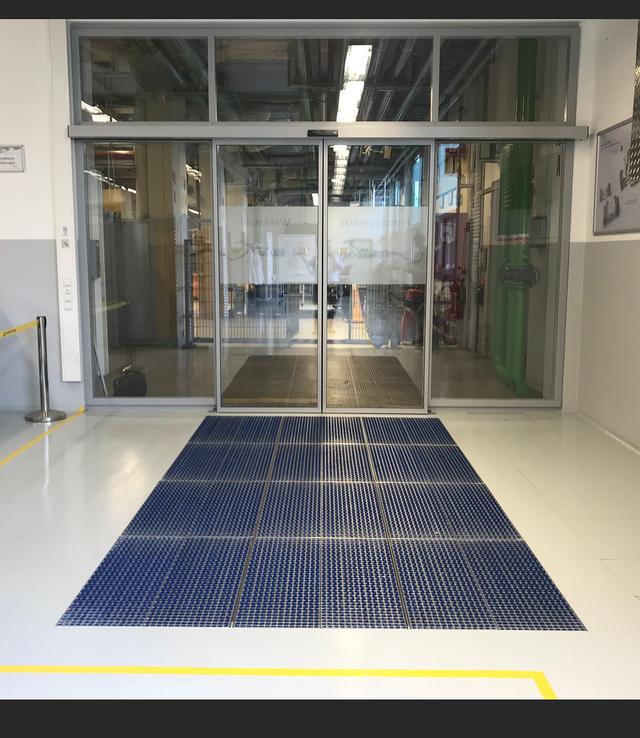

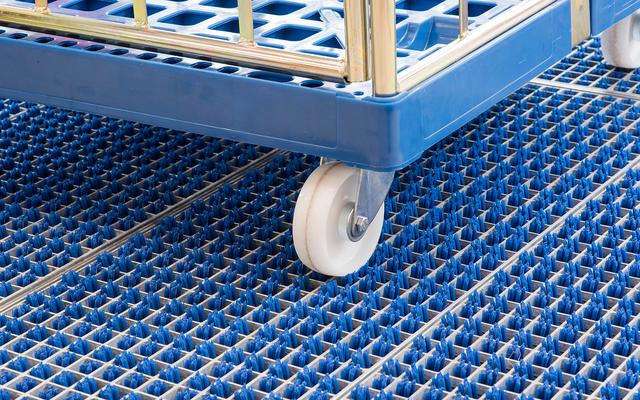

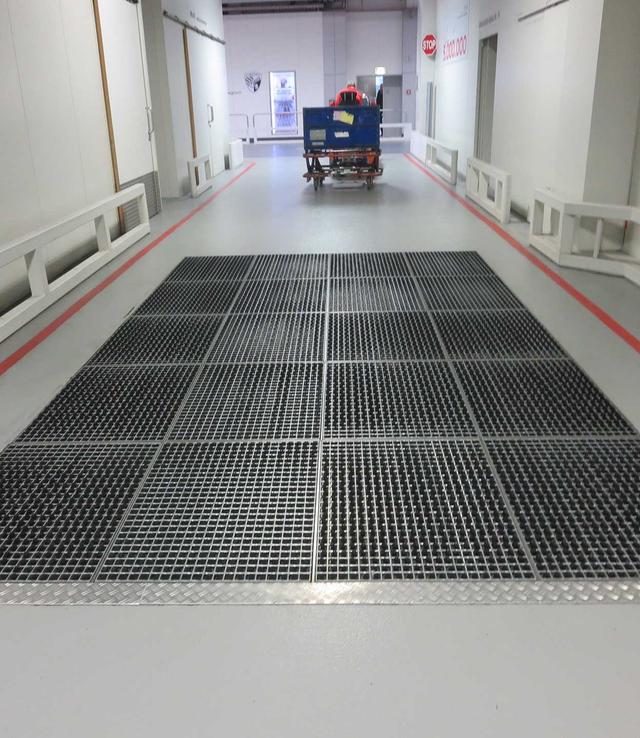

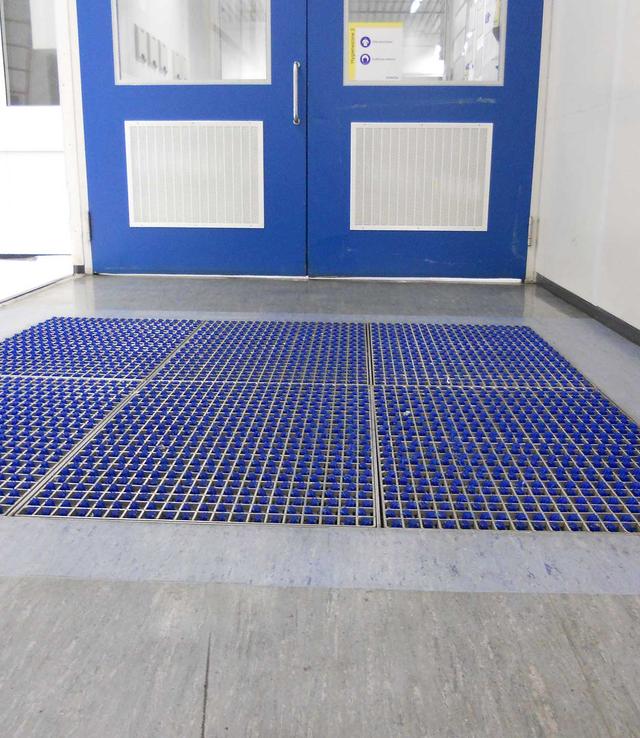

ProfilGate® Series st is dry tire cleaning system specialized for the cleaning of narrow rollers. Owing to the fine-mesh structure of the grates, these models are particularly suitable for route tugger trains, carts, trolleys and AGV. Ideal for all indoor areas due to smooth-run, even grate surface, also with narrow, hard rollers.
Technical Data
- For special cleaning of narrow rollers
- Ideal for in indoor areas
- Recommended number of passages per day < 100
- Tray height [mm] 55

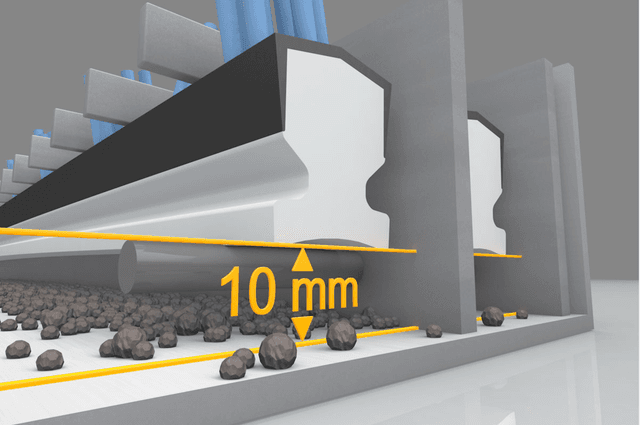

- Extra dirt / water container [mm] 10
- Optimum for tire cleaning
- Maximum admissible vehicle weight [t] 30
- Suitable for hard rollers
- Appropriate roller width [mm] ≥24
- Suitable for above ground application
- Steel (S 235 JR) grate
- Stainless steel V2A (1.4301) tray
- Brush strip per grate 14
- Grates per segment 2
- Number of segments W x L 1 x 1

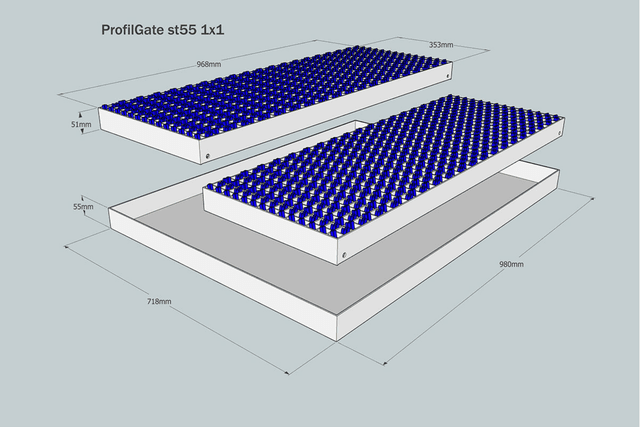

- Tray size W x L [mm] 718 x 980
- Number of grates x weight [kg] 2 x 27
Documents
- 005-2300B__Maintenance.pdf
- 005-2300B__Model Overview.pdf
- 005-2300B__Storing and Shipping.pdf
- 005-2300B__Catalogue.pdf
- 005-2300B__Changing Brush.pdf
- 005-2300B__Installation above Ground.pdf
- 005-2300B__Material for Installation.pdf
- 005-2300B__Operation Manual.pdf
- 005-2300B__Maintenance Plan.pdf
- 005-2300B__Installation in Ground.pdf
