QICPIC

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Unit Price

On Request

Supplier

SYMPATEC

Country of origin

Germany

Unit of Measurement

PIECE

Delivery time

16 - 20 weeks

Validity Until

31.12.2024

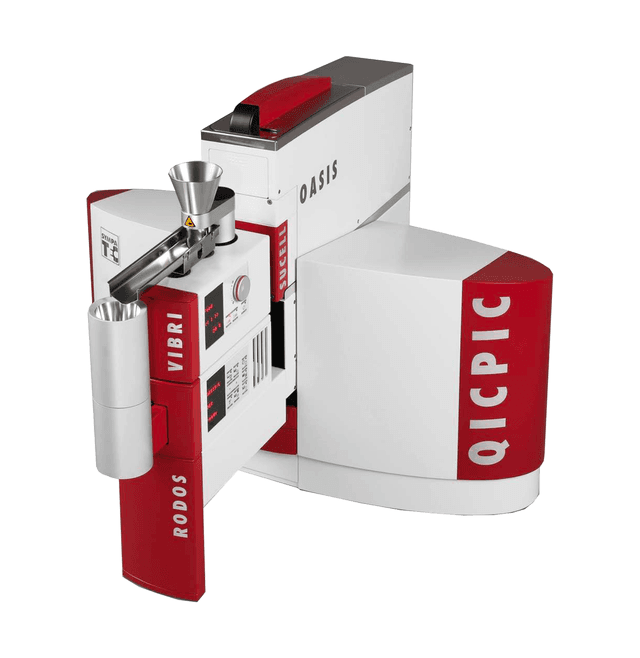

Applying components of highest performance, Sympatec modular particle size and shape analyser QICPIC develops the full power of dynamic image analysis from below 1 µm to 34,000 µm. High speed image analysis using a pulsed light source with illumination times in the nanosecond range the particles are optically frozen while a high-resolution, high-speed camera captures the razor-sharp particle projections with a frequency of up to 500 frames per second.

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Sympatec QICPIC, 0.55 - 33,792 µm, dynamic image analysis sensor

Technical Data

Overall detection range [µm] 0.55 - 33,792
Principle Dynamic Image Analysis
Quasi-static image analysis by nanosecond exposure
Use dry dispersion units that reliably separate particle
Double-telecentric optics for highest contrast
Image size independent of object position
In accordance with ISO 13322-1/2
Light source Pulsed LED λ = 660 nm (Red)
Pulse duration in nanoseconds range
Frequency 10 to 500 fpc
Discrete measuring range modules M3 - M9
Camera detector resolution [px] 2,048 x 2,048
Frame rate [fps] 85 @ 4.2 MP to 225 @ 1.5 MP
Data rate 5 GBit/s (1xUSB 3.0)
Powerful evaluation modes, meaningful results
Combinable to all QICPIC dispersing systems
Compliant with ISO 13322-1/2 for the complete size range
