HELOS KR Vario

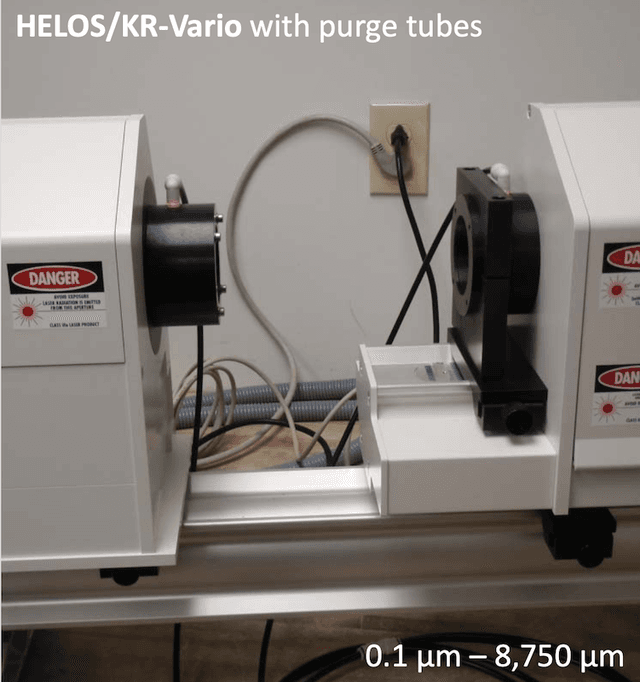

Sympatec HELOS KR Vario, 0.1 - 8,750 µm, laser diffraction sensor

Unit Price
On Request
Supplier
SYMPATEC
Country of origin
Germany
Unit of Measurement
PIECE
Delivery time
16 - 20 weeks
Validity Until
31.12.2023
The proven Sympatec HELOS series – with its classical parallel beam laser diffraction set-up – offers a powerful technology for particle size distribution analysis of powders, granules, suspensions, emulsions, sprays and numerous other particulate systems. A size range from below 0.1 µm to 8,750 µm is mastered. The modular sensor reveals its true superiority when operated with feeding and dispersing systems, that guarantee for best adaption to the product sample.

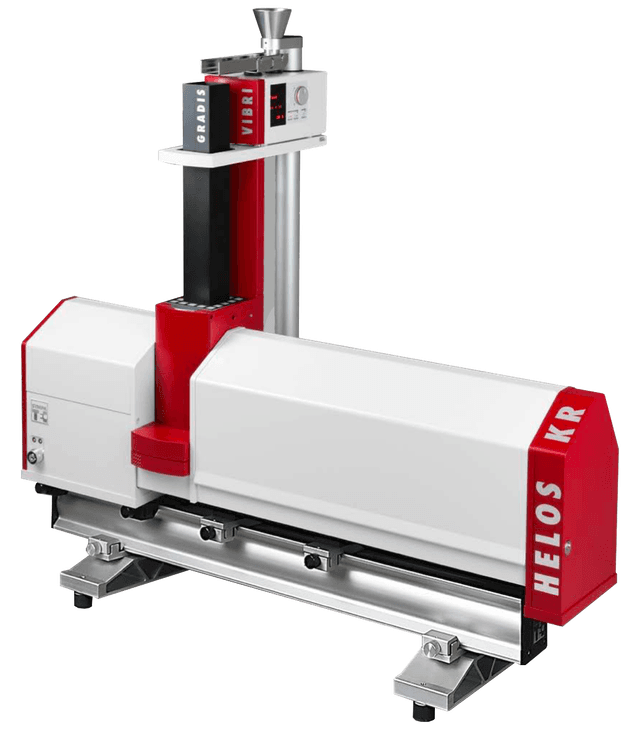

Sympatec HELOS KR Vario, 0.1 - 8,750 µm, laser diffraction sensor
Technical Data
  • Overall measuring range [µm] 0.1 - 8,750
  • Principle Laser Diffraction
  • Forward scattering in parallel beam
  • Classic optical fourier set up (ISO 13320)
  • Open measuring zone offering unique working distance
  • Light source Helium-neon laser λ = 632.8 nm (Red)
  • Protection class 3R |1 with open | closed dispersing units
  • Beam diameter adjustable to measuring range
  • Discrete measuring range modules R1 - R8
  • Multi-element semiconductor detector
  • 31 elements detector with 180o design for orientation
  • 3 center elements for precise auto alignment
  • Acquisition rate 2,000 diffraction patterns per second
  • Raw data recording in up to 248 intensities
  • Evaluation mode of particle size distribution FREE/ MIEE
  • Accuracy <1%, repeatability <0.04%/0.3% (wet/dry)
  • Combinable to all HELOS dispersing systems
  • Compliant with ISO 13320 for the complete size range
