OPUS

Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor

Unit Price
On Request
Supplier
SYMPATEC
Country of origin
Germany
Unit of Measurement
PIECE
Delivery time
16 - 20 weeks
Validity Until
31.12.2024
The ultrasonic extinction spectrometer Sympatec OPUS analyses particle size distribution as well as concentration of your suspension or emulsion ranging from below 1 µm to 3 mm. For many years, OPUS is successfully operating in crystallization, grinding and homogenization processes and proves its manifold performances. With various applications, OPUS is repeatedly revealing new insights – not only in production lines but also in pilot plants and lab settings.

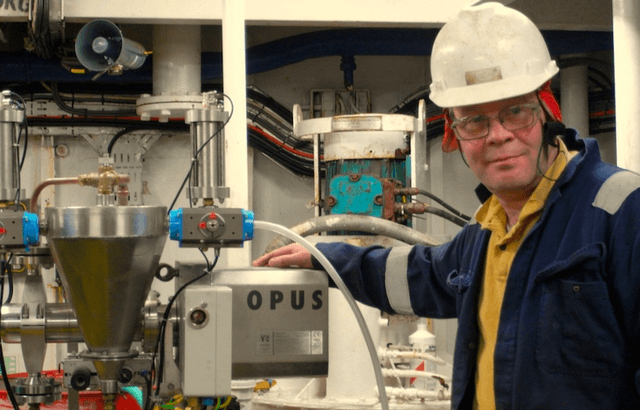

Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor

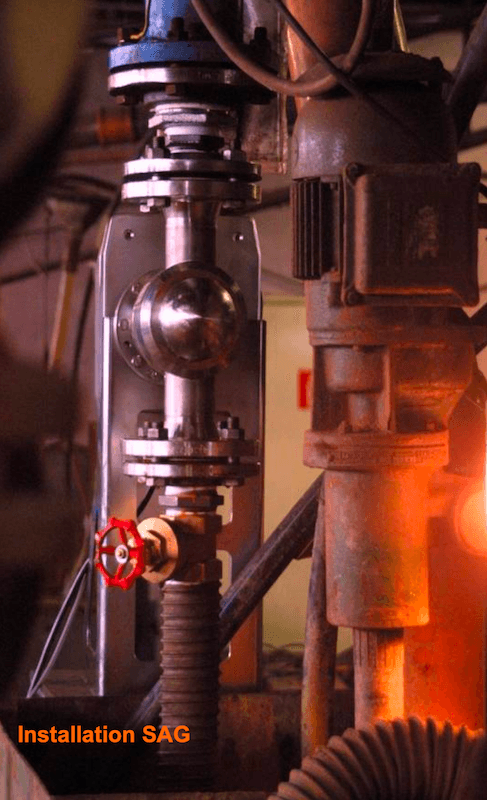

Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor

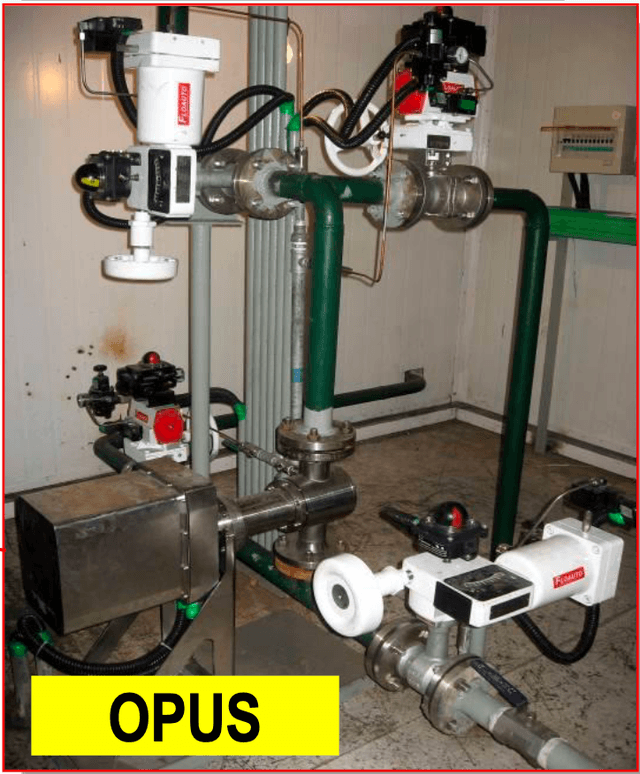

Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor

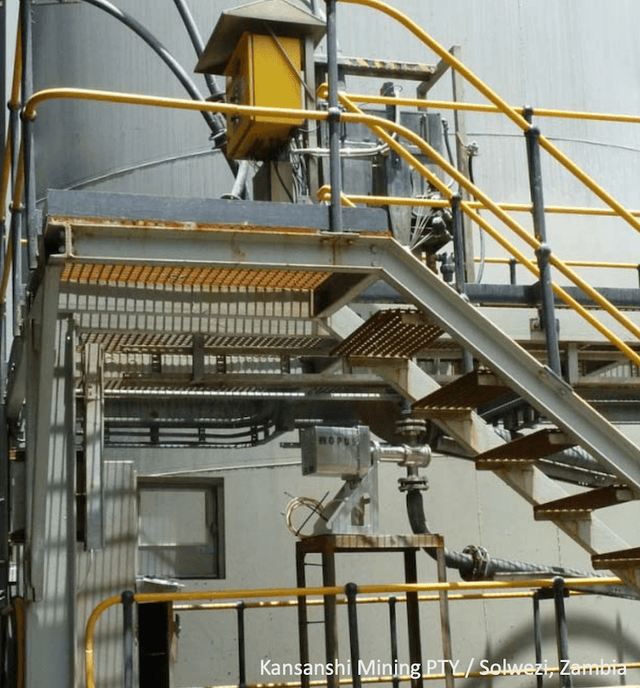

Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor
Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor
Sympatec OPUS, < 0.1 - 3,000 µm, ultrasonic extinction sensor
Technical Data
  • Overall measuring range [µm] <0.1 - 3,000
  • Sample concentration < 1% - 20% by volume
  • Principle Ultrasonic Extinction
  • Classic sound absorption spectroscopy at constant path length (ISO 20998-1:2006)
  • Probe design with flow-through measuring zone
  • Sound frequency range 100 kHz - 200 MHz
  • Precise receiver alignment by micro hydraulics
  • Field of sound Dia. 30mm, path length 1-10mm
  • Data logging: dynamic range 160dB, accuracy 0.1dB, frequency resolution 31 sampling points
  • Evaluation mode of extinction function KSIGMA
  • Repeatability <0.5%/1% (repeated measuring/ riffled sample), comparability <5%
  • Compliant with ISO 20998-1, FDA 21 CFR Part 11
